Sofoyo is the Exclusive Master Distributor for Horiba’s OCMA series Oil Content Analysers and S-316 Oil Extraction Solvent in Singapore. We keep adequate stock of the S-316 solvent such that Customers can expect delivery of the solvent within two working days upon placing their order. Sofoyo also provides after sales service including Preventive Maintenance service and repair of the OCMA analysers.
PRODUCTS
Model: OCMA-500
For measuring oil components in water.
The OCMA-500 Oil Content Analyzer has been redesigned for even better operability, maintaining its user-friendly features. After injecting the sample, all you have to do is press a button to get the monitoring operation done quickly, from oil extraction to sample measurement and draining. This machine is easy for anyone to use.The OCMA-500 cuts solvent consumption by 20% compared with our previous products, reducing environmental impact. It also reduces the running costs.

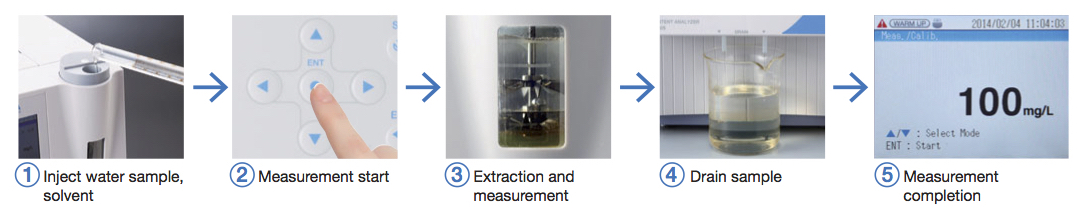

How To Measure
Features
- Fully automated one-touch operation, from oil extraction to sample measurement and draining
- Reduced environmental impact and running costs
(20% cut in solvent consumption) - With no need for a solvent evaporation process, the OCMA-500 offers easy operation, and can detect even oils with low boiling points.
Improvement of Operability

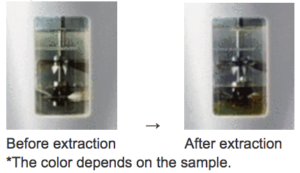

- Backlit extraction tank (patent applied for)
The extraction tank is equipped with LEDs. Illuminating the tank makes it easy to check the phase separation between sample and solvent.
-
Color graphic LCD
The OCMA-500 comes equipped with a 3.5-in color graphic LCD. Menus and measurement data can be clearly seen - USB flash memory drive port
Storing data on USB flash memories enables easy data management on PCs. - Unit conversion
Inputting measurement conditions can change the units displayed (mg/L, mg/kg, mg/g, and mg/PC) as the user needs.
Various Applications
- Factory dranage
For monitoring final discharge water
- Ballast water, Bilge
For monitorng discharge from ships
- Vehicle mentenance site and gas station
For monitoring water quality in sorrounding areas
- Others
Water quality survay based on environmental standard.
For monitoring final discharge from petroleum refinery plant.
For oil dispersion reserch at time of an accident.
Specifications
| Measurement principle | Solvent extraction, NDIR analysis (Infrared spectroscopy) |
| Measurement range | 0mg/l ~ 200mg/l dynamic ranging |
| Resolution | 0 to 99.9 mg/L; 0.1 mg/L 100 to 200 mg/L; 1 mg/L |
| Repeatability | 0 to 9.9 mg/L; ± 0.2 mg/L ± 1 digit 10.0 to 99.9 mg/L; ± 2 mg/L ± 1 digit 100 to 200 mg/L; ± 4 mg/L ± 1 digit *For standard liquids |
| Display Method | 3.5 inches, 320×240 dots Backlight Colour graphic LCD |
| Calibration Method | Zero, Span Calibration |
| Extraction Solvent | S-316 solvent |
| Amount of test sample required | Sample water : Solvent = 2 : 1 |
| Amount of extraction solvent required | 8 mL |
| Extraction Method | Built-in extractor |
| Ambient Operationg Temperature | 0 to 40 ℃ (non condensation) |
| Power supply | AC 100V to 240V ±10%, 50/60 Hz |
| Power consumption | AC 100V:Approx.60VA AC 240V: Approx.90VA |
| External Dimensions | 200(W)×313(D)×342(H) mm |
| Mass | Approx. 7 kg |
| External Output | Output to an USB memory stick |
| Functions | 300-item data memory Stabilized measurement value display Self error determination Clock |
Model: OCMA-550
For measuring residual oil on parts, soil, etc.
OCMA-550 to measure residual oil on components and concentrations of oil adhered on solids such as soil. Measurement can be easily made only by injecting the extracted water sample into the attached cell and setting it to the equipment. This model features a simple design which allows opening/closing of the door to setting of cell with just one hand. This is best for measurement of extracted samples such as evaluation of residual oil on components and measurement of oil contained in food.

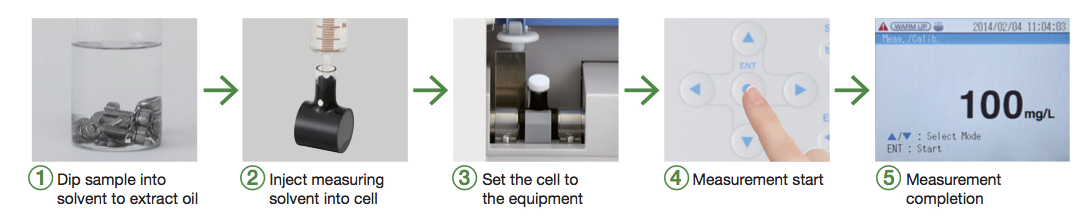

How To Measure
Features
- Any oil with low boiling point can be measured
With no need for a solvent evaporation process, the OCMA-500 series offers easy operation, and can detect even oils with low boiling points - Cell is easily detactable with just one hand
Simple design which allows opening/closing of door and detachment of cell with just one hand. Measurement operation becomes smoother.
- Timer function
A timer function to display a measurement value in a certain amount of time is equipped. This saves work and time required for measurement. - Color graphic LCD
The OCMA-500 series comes equipped with a 3.5-in color graphic LCD. Menus and measurement data can be clearly see - USB flash memory drive port
Storing data on USB flash memories enables easy data management on PCs. - Unit conversion
Inputting measurement conditions can change the units displayed (mg/L, mg/kg, mg/g, and mg/PC) as the user needs.
Various Applications
- Residual oil componenets
For quality control of components
- For piping of air conditioners and refrigerator
To prevent reduction of cooling function
- Semiconductor field
For evaluation of degreasing capabilityFor quality control of components
- Others
Useful for soil (environmental pollution), food(health hazard) and gas(quality deterioration)
Specifications
| Measurement principle | Solvent extraction-non-dispersive infrared absorption analysis method |
| Measurement range | 0mg/L ~ 200mg/L |
| Resolution | 0 to 99.9 mg/L; 0.1 mg/L 100 to 200 mg/L; 1 mg/L |
| Repeatability | 0 to 9.9 mg/L; ± 0.4 mg/L ± 1 digit 10.0 to 99.9 mg/L; ± 2 mg/L ± 1 digit 100 to 200 mg/L; ± 4 mg/L ± 1 digit *For standard liquids |
| Display Method | 3.5 inches, 320×240 dots Backlight Colour graphic LCD |
| Calibration Method | Select each optionally zero and span calibration |
| Extraction Solvent | S-316 solvent ※Do not use any other solvent than S-316 |
| Amount of extraction solvent required | Approx. 6.5ml (Amount of extration solvent required) |
| Extraction Method | Using the extraction solvent and extracted manually outside the product |
| Ambient Operationg Temperature | 0 to 40 ℃ (non condensation) |
| Power supply | AC 100V to 240V ±10%, 50/60 Hz |
| Power consumption | AC 100V to 240V : Approx.60VA |
| External Dimensions | 195(H)×253(W)×293(D) mm |
| Mass | Approx. 5 kg |
| External Output | Output to an USB memory stick |
| Functions | 300-item data memory(Measurement history) Stabilized measurement value display Self error determination Clock function Unit conversion function |
S-316 Oil Extraction Solvent
HORIBA special solvent for oil measurement.
Certified by ASTM D7066
This solvent is used to extract the oil components from oily water samples, soil samples, or product surfaces.
